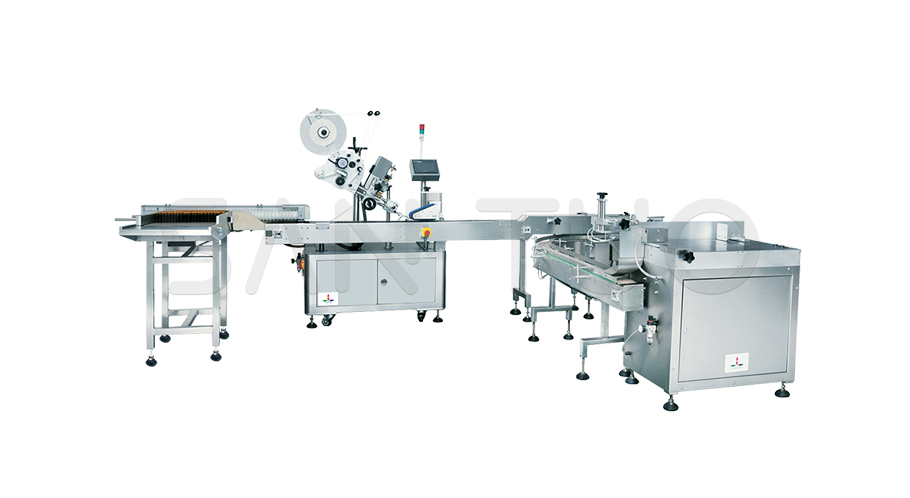

Vertical Feeding/Horizontal Labeling with Tray Separator
Home Products Vertical Feeding/Horizontal Labeling with Tray Separator
Use

It is mainly suitable for automatic labeling and loading of various small-diameter bottles such as ampoules, vials, oral liquid bottles, etc.

After labeling, it automatically enters the bottle support, feeding, coding, labeling, sub-contracting and feeding.



Features

※ The screw bottle separating mechanism is adopted to ensure the accurate spacing of the bottles, thereby reducing the bottle crushing rate (less than 200,000).


南宫c7问鼎※ Horizontal roller chain conveying can ensure labeling accuracy and stable labeling effect.




南宫c7问鼎    Bottle holder device:


南宫c7问鼎※ The bottle tray conveying mechanism is controlled by the servo motor, and the positioning is accurate


南宫c7问鼎※ The bottle lowering mechanism is controlled by a servo motor, and the tray is accurately loaded;


南宫c7问鼎※ When changing different bottles and bottle holders, only simple adjustments and parameter settings are needed, and parts and molds do not need to be replaced. The operation is convenient;


※ The loading speed and labeling speed are automatically matched. When there is no tray or bottle, the system will automatically stop waiting.


Parameters

※ Model: SL-235


南宫c7问鼎※ Labeling into bottle holder speed: 450 bottles / minute (related to the size of the object and label)


南宫c7问鼎※ Labeling accuracy: ± 0.5mm (excluding the error of the object and label)


※ Bottle diameter: 10-22mm or 10-30mm


※ Bottle filling rate:> 99.5% (based on bottle)


※ Power: 220VAC 50Hz 1950W


※ Machine size: length 3530mm x width 1600mm x height 1760mm
